TD303
TD303 Economy Wing Gate
Cost-Effective Wing Gate for Everyday Access Control
TD303 is designed for factories, schools, residential communities, and office buildings that require reliable pedestrian access control at an affordable cost.
Passage Width
600 mm
Throughput Rate
20–60 Persons/Min
Motor Type
Brushless DC Motor
Infrared Sensors
4Pairs
Cabinet Material
SUS304 Stainless Steel
Specification
Dimensions
1200 × 300 × 980 mm
Passage Width
600 mm
Motor Type
Brushless DC Motor
Cabinet Material
SUS304 Stainless Steel
Top Cover Thickness
1.2 mm
Body Thickness
0.8 mm
Wing Material
Acrylic
Infrared Sensors
4 Pairs
Throughput Rate
20–60 Persons/Min
Communication Interface
RS485
Power Supply
AC220V, 50/60Hz
Power Consumption
≤180W
Protection Level
IP54
Working Environment
Indoor & Outdoor

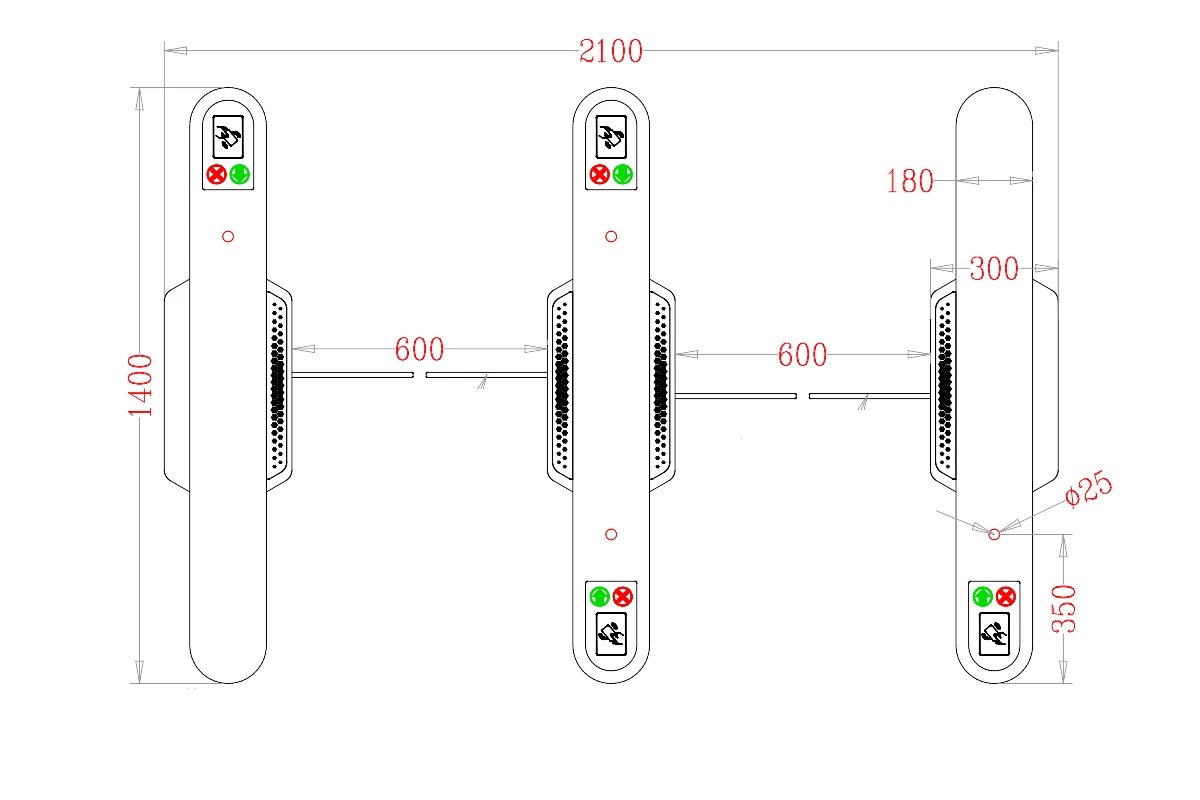

Dimensions
Advantages
Budget-Friendly
Designed for projects requiring reliable access control with optimized investment.
Stable Operation
Brushless motor technology ensures smooth and long-lasting performance.
Easy Installation
Simple wiring and modular design reduce installation time.
Outdoor Ready
Simple structure reduces maintenance requirements.
Easy Integration
IP54 protection supports both indoor and outdoor applications.
Emergency Opening
Wings automatically retract during power failure.
FAQ
Can TD303 be installed outdoors?
Yes. The IP54-rated design supports indoor and outdoor environments.
What access control systems are supported?
RFID cards, QR codes, facial recognition, fingerprint readers, and other third-party systems.
What is the passage width?
600 mm.
What happens during power failure?
The wings automatically open for emergency evacuation.
Can the cabinet be customized?
Yes. OEM branding and customization are available.
